Single Acting Hydraulic Piston Seals Set With Thermoplastic Header Ring

Name: Single Acting Hydraulic Piston Seals Set With Thermoplastic Header Ring
Brand: Kelong
Price: 1 USD

China Single Acting Hydraulic Piston Seals Set With Thermoplastic Header Ring wholesale

Brand Name : Kelong

Model Number : KL26

Certification : ISO9001 / IRIS

Place of Origin : China

Payment Terms : L/C, T/T, Paypal

Delivery Time : 7-15 work days

Packaging Details : Opp bag

Supply Ability : 10000+pcs+months

Style : Single Acting Piston Seal Set

Material : FABRIC NBR / POM

Pressure (max) bar : 400

Temperature (max) °C : -30/+100

Sliding Speed (max)- m/s : 0.5

Application : Mining industry / Iron and steel industry / Injection moulding machines / Heavy duty cylinders / Presses

Contact Now

Single Acting Piston Seal Set With Thermoplastic Header Ring, Fabric Elastomer Intermediate Ring And Backup Ring.

KL26 single acting piston seal set consists of thermoplastic header ring, fabric elastomer intermediate ring and fabric elastomer backup ring.

Advantages

• High wear resistance
• Superior sealing performance in heavy duty applications
• Long service life
• Thin oil film
• Suitable design for locking applications

Area of Application

• Mining industry
• Iron and steel industry
• Injection moulding machines
• Presses
• Heavy duty cylinders

Single Acting Hydraulic Piston Seals Set With Thermoplastic Header Ring

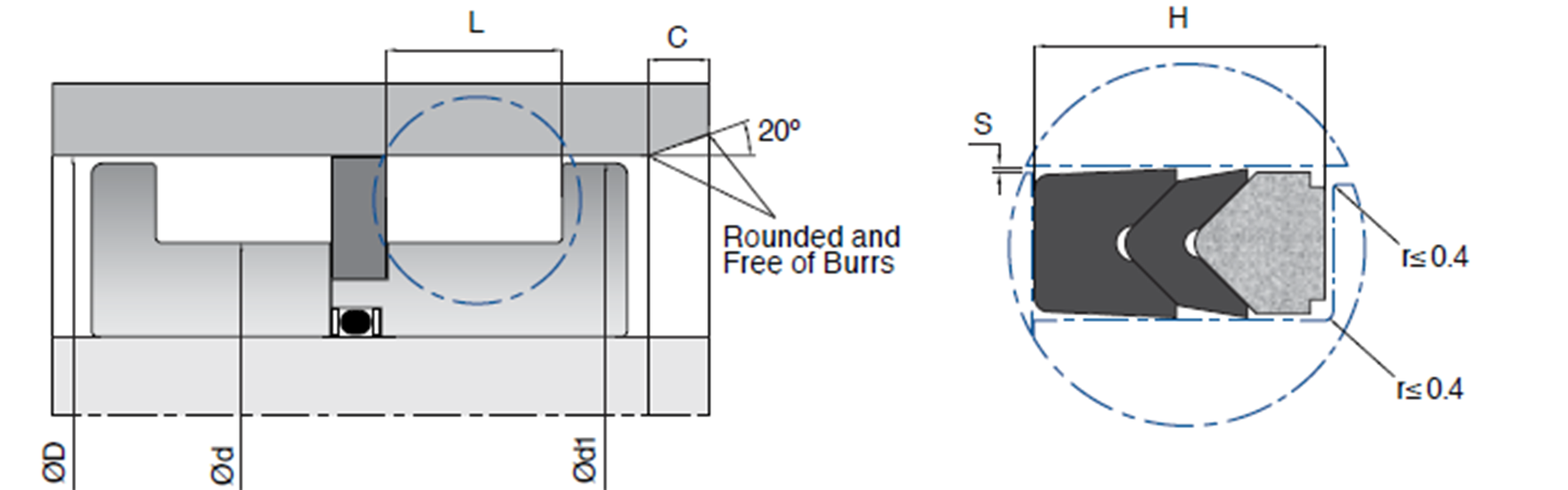

	D (H9)	d (h11)	L (+0.2/-0)	E	H	d1	C	MATERIAL
KL26-020	20	10	9.3	2.5	8.9	19.5	6	FB
KL26-022	22	12	9.3	2.5	8.9	21.5	6	FB
KL26-025	25	15	9.3	2.5	8.9	24.5	6	FB
KL26-028	28	18	9.3	2.5	8.9	27.5	6	FB
KL26-030	30	20	9.3	2.5	8.9	29.5	6	FB
KL26-032	32	20	10.9	2.75	10.4	31	6	FB
KL26-035	35	23	10.9	2.75	10.4	34	6	FB
KL26-036	36	24	10.9	2.75	10.4	35	6	FB
KL26-040	40	25	11.5	3	11	39	6	FB
KL26-042	42	27	11.5	3	11	41	6	FB
KL26-045	45	30	11.5	3	11	44	6	FB
KL26-050	50	35	11.5	3	11	49	6	FB
KL26-055	55	40	11.5	3	11	54	6	FB
KL26-056	56	41	11.5	3	11	55	6	FB
KL26-060	60	45	11.5	3	11	59	6	FB
KL26-063	63	48	13	3	12.5	62	6	FB
KL26-070	70	50	15.2	4	14.6	69	7	FB
KL26-080	80	60	15.2	5	14.6	79	7	FB
KL26-090	90	70	21.2	5	20.6	89	7	FB
KL26-100	100	80	21.2	5	20.6	99	7	FB
KL26-110	110	90	21.2	5	20.6	109	7	FB
KL26-115	115	95	21.2	5	20.6	114	7	FB
KL26-125	125	100	25.8	6	25	124	8	FB
KL26-140	140	115	25.8	6	25	139	8	FB
KL26-150	150	120	29	7.5	28	148.5	8	FB
KL26-160	160	130	29	7.5	28	158.5	8	FB
KL26-180	180	150	31.5	7.5	30.5	178.5	8	FB
KL26-200	200	170	33.5	7.5	32.5	198.5	8	FB
KL26-250	250	220	33.5	7.5	32.5	248.5	8	FB
KL26-275	275	245	33.5	9	32.5	273.5	8	FB
KL26-280	280	250	33.5	7.5	32.5	278.5	8	FB
KL26-300	300	270	33.5	7.5	32.5	298.5	8	FB
