HRX HBY Buffer Seal Hydraulic Cylinder Seal / Excavator Rotary Oil Seal

Name: HRX HBY Buffer Seal Hydraulic Cylinder Seal Excavator Rotary Oil Seal
Brand: KELONG
Price: 1 USD

China HRX HBY Buffer Seal Hydraulic Cylinder Seal / Excavator Rotary Oil Seal wholesale

Brand Name : KELONG

Model Number : Rubber V-seal VL Rotary Shaft Seal Ring

Place of Origin : CHINA

MOQ : 100

Payment Terms : L/C, T/T

Supply Ability : 100,000 pcs /months

Delivery Time : 15

Packaging Details : Customizable packaging

Name : Buffer Seal Hydraulic Cylinder Seal

Material : PTFE NBR

Pressure (max) bar : 300

Temperature (max) °C : -30/+105

Sliding Speed (max)- m/s : 5

Contact Now

HBY HRX Standard Buffer Rod Seal Buffer Ring Excavator Rotary Oil Seal Hydra Cylinder Seal

HRX HBY Buffer Seal Hydraulic Cylinder Seal / Excavator Rotary Oil Seal
Type L V-rings with straight back serves as a pressure-less axial rod seal with a very small mounting length, which is clamped on the shaft. The flexible sealing lip seals a counterface at a right angle to the shaft preventing dirt, dust and splash to enter the construction.

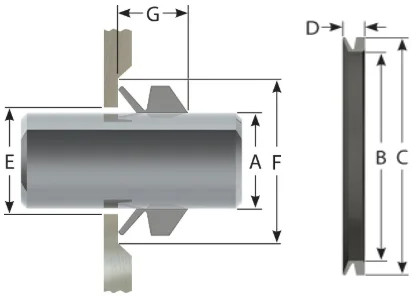

VL Style Size Chart

		Seal Dimensions			Housing Dimensions
	A	B	C	D	E	F	G
Part Number	Shaft Diameter	I.D.	O.D	Height	I.D.	O.D	Width
VL 130	125.00-135.00	117.00	130.21	10.41	A+5.08	A+ 20.07	7.87±1.52
VL140	135.00-145.00	126.00	139.21	10.41	A+ 5.08	A+ 20.07	7.87±1.52
VL 150	145.00-155.00	135.00	148.21	10.41	A+ 5.08	A+ 20.07	7.87±1.52
VL 160	155.00-165.00	144.00	157.21	10.41	A+ 5.08	A+ 20.07	7.87±1.52
VL170	165.00-175.00	153.00	166.21	10.41	A+ 5.08	A+20.07	7.87±1.52
VL 180	175.00-185.00	162.00	175.21	10.41	A+ 5.08	A+ 20.07	7.87 ±1.52
VL 190	185.00-195.00	171.00	184.21	10.41	A+ 5.08	A+ 20.07	7.87±1.52
VL 200	195.00-210.00	182.00	195.21	10.41	A+ 5.08	A+ 20.07	7.87±1.52
VL 220	210.00-233.00	198.00	211.21	10.41	A+ 5.08	A+ 20.07	7.87±1.52
VL 250	233.00-260.00	225.00	238.21	10.41	A+ 5.08	A+20.07	7.87 ±1.52
VL 275	260.00-285.00	247.00	260.21	10.41	A+5.08	A+20.07	7.87±1.52
VL 300	285.00-310.00	270.00	283.21	10.41	A+ 5.08	A+20.07	7.87±1.52
VL 320	310.00-335.00	292.00	305.21	10.41	A+ 5.08	A+20.07	7.87±1.52
VL 350	335.00-365.00	315.00	328.21	10.41	A+ 5.08	A+ 20.07	7.87 ±1.52
VL375	365.00-385.00	337.00	350.21	10.41	A+ 5.08	A+20.07	7.87±1.52
VL 400	385.00-410.00	360.00	373.21	10.41	A+ 5.08	A+20.07	7.87±1.52
VL425	410.00-440.00	382.00	395.21	10.41	A+ 5.08	A+ 20.07	7.87±1.52
VL 450	440.00-475.00	405.00	418.21	10.41	A+ 5.08	A+ 20.07	7.87±1.52
VL 500	475.00-510.00	450.00	463.21	10.41	A+ 5.08	A+20.07	7.87±1.52
VL 550	540.00-575.00	495.00	508.21	10.41	A+ 5.08	A+20.07	7.87±1.52
VL600	575.00-625.00	540.00	553.21	10.41	A+5.08	A+ 20.07	7.87±1.52
