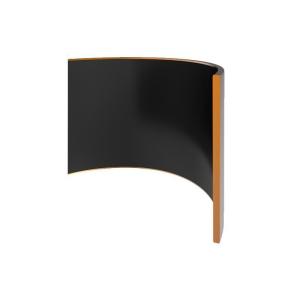

KL64 Hydraulic Guide Ring High Performance Composite Bushings

Name: KL64 Hydraulic Guide Ring High Performance Composite Bushings
Brand: Kelong
Price: 1 USD

China KL64 Hydraulic Guide Ring High Performance Composite Bushings wholesale

Brand Name : Kelong

Model Number : KL64

Certification : ISO9001 / IRIS

Place of Origin : China

Payment Terms : L/C, T/T, Paypal

Supply Ability : 100,000 pcs /months

Delivery Time : 7-15 work days

Packaging Details : Opp bags

Material : Carbon Steel PTFE Bronze

Temperature (max) °C : -195/+280

Sliding Speed (max)- m/s : 2.0 (Dry Run) 5.0 (Working with Hydraulic Fluid)

Style : Hydraulic Guiding Elements

Application : Hydraulic and Pneumatic Cylinders

Contact Now

KL64 is a composite bushing, that provides high performance under high temperature.

Advantages

• Goood thermal properties of the bronze layer
Corrosion resistant bronz layer is suitable for asidic or alkali media

• High radial load bearing capacity

Area of Application

• Hydraulic and Pneumatic Cylinders

• Applications with high radial load

KL64 Hydraulic Guide Ring High Performance Composite Bushings

	d (f7)	D (H7)	L (+0.2/-0)	MATERIAL
KL64-014	14	16	10	Bronze - - Bushing
KL64-016	16	18	10	Bronze - - Bushing
KL64-016/1	16	18	25	Bronze - - Bushing
KL64-016/3	16	18	15	Bronze - - Bushing
KL64-020	20	23	15	Bronze - - Bushing
KL64-020/1	20	23	30	Bronze - - Bushing
KL64-020/2	20	23	25	Bronze - - Bushing
KL64-022	22	25	25	Bronze - - Bushing
KL64-035	35	39	30	Bronze - - Bushing
KL64-040	40	44	30	Bronze - - Bushing
KL64-045	45	50	30	Bronze - - Bushing
KL64-050	50	55	30	Bronze - - Bushing
KL64-050/1	50	55	40	Bronze - - Bushing
KL64-055	55	60	30	Bronze - - Bushing
KL64-060	60	65	20	Bronze - - Bushing
KL64-060/1	60	65	30	Bronze - - Bushing
KL64-060/2	60	65	40	Bronze - - Bushing
KL64-060/3	60	65	50	Bronze - - Bushing
KL64-060/4	60	65	60	Bronze - - Bushing
KL64-065	65	70	40	Bronze - - Bushing
KL64-070	70	75	30	Bronze - - Bushing
KL64-070/1	70	75	40	Bronze - - Bushing
KL64-075	75	80	30	Bronze - - Bushing
KL64-075/1	75	80	40	Bronze - - Bushing
KL64-080	80	85	30	Bronze - - Bushing
KL64-080/1	80	85	40	Bronze - - Bushing
KL64-080/2	80	85	50	Bronze - - Bushing
KL64-085	85	90	30	Bronze - - Bushing
KL64-085/1	85	90	40	Bronze - - Bushing
KL64-090	90	95	30	Bronze - - Bushing
KL64-090/1	90	95	40	Bronze - - Bushing
KL64-090/2	90	95	50	Bronze - - Bushing
KL64-090/3	90	95	60	Bronze - - Bushing
KL64-095	95	100	30	Bronze - - Bushing
KL64-095/1	95	100	40	Bronze - - Bushing
KL64-095/2	95	100	50	Bronze - - Bushing
KL64-095/3	95	100	60	Bronze - - Bushing
KL64-100	100	105	30	Bronze - - Bushing
KL64-100/1	100	105	40	Bronze - - Bushing
KL64-100/2	100	105	50	Bronze - - Bushing
KL64-100/3	100	105	60	Bronze - - Bushing
KL64-105	105	110	50	Bronze - - Bushing
KL64-105/1	105	110	60	Bronze - - Bushing
KL64-105/2	105	110	35	Bronze - - Bushing
KL64-110	110	115	50	Bronze - - Bushing
KL64-110/1	110	115	60	Bronze - - Bushing
KL64-115	115	120	60	Bronze - - Bushing
KL64-120	120	125	50	Bronze - - Bushing
KL64-120/1	120	125	60	Bronze - - Bushing
KL64-120/2	120	125	70	Bronze - - Bushing
KL64-125	125	130	50	Bronze - - Bushing
KL64-130	130	135	60	Bronze - - Bushing
KL64-140	140	145	55	Bronze - - Bushing
KL64-150	150	155	60	Bronze - - Bushing
