KL76 Pneumatic Rod Seals Single Acting Sealing Element For Open Groove

Name: KL76 Pneumatic Rod Seals Single Acting Sealing Element For Open Groove
Brand: KELONG
Price: 1 USD

China KL76 Pneumatic Rod Seals Single Acting Sealing Element For Open Groove wholesale

Brand Name : KELONG

Model Number : KL76

Certification : ISO9001 / IRIS

Place of Origin : China

Payment Terms : L/C, T/T, Paypal

Supply Ability : 100,000 pcs /months

Delivery Time : 7-15 work days

Packaging Details : Opp bags

Style : Pneumatic Rod Seals

Material : NBR

Pressure (max) bar : 16

Temperature (max) °C : -30/+105

Sliding Speed (max)- m/s : 10

Application : Pneumatic Cylinders

Contact Now

KL76 pneumatic rod seal is a single acting sealing element made of elastomer material and has a metal ring body inside for use in open grooves.

Advantages

• Superior wiping performance
• Superior sealing performance
• Wide range of dimensions
• Good adaptation to temperature changes thanks to the metal ring inside

Area of Application

• Pneumatic Cylinders
• Recommended for use in cylinders according ISO 6432,

KL76 Pneumatic Rod Seals Single Acting Sealing Element For Open Groove

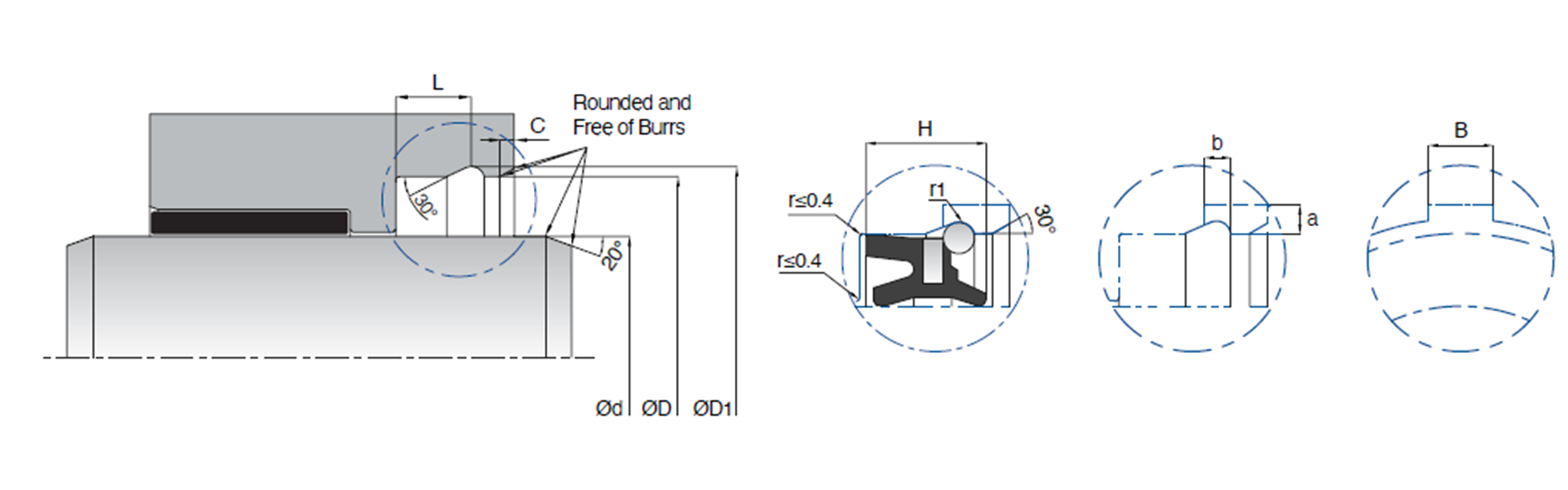

	d (f9)	D1 (± 0.1)	D (H10)	H	L (+0.2/-0)	r1	a	b	B	C	MATERIAL
KL76-010	10	19	17	8.4	7.5	1.1	1.8	2.2	4	1.5	NBR
KL76-012	12	24	22	9.5	8.5	1.1	1.8	2.2	4	1.5	NBR
KL76-012/1	12	22	20	8.5	7.5	1.1	1.8	2.2	4	1.5	NBR
KL76-014	14	26	24	9.5	8.5	1.1	1.8	2.2	5	1.5	NBR
KL76-016	16	28	26	9.5	8.5	1.1	1.8	2.2	5	1.5	NBR
KL76-018	18	28	26	8.5	7.5	1.1	1.8	2.2	5	1.5	NBR
KL76-020	20	32	30	9.5	8.5	1.1	1.8	2.2	5	2	NBR
KL76-022	22	34.5	32	9.5	8.5	1.4	2	2.8	7.5	2	NBR
KL76-025	25	37.5	35	9.5	8.5	1.4	2	2.8	7.5	2	NBR
KL76-030	30	42.5	40	9.5	8.5	1.4	2	2.8	7.5	2	NBR
KL76-032	32	44.5	42	9.5	8.5	1.4	2	2.8	7.5	2	NBR
KL76-035	35	47.5	45	9.5	8.5	1.4	2	2.8	7.5	2	NBR
KL76-040	40	52.5	50	9.5	8.5	1.4	2	2.8	7.5	2	NBR
KL76-045	45	57.5	55	9.5	8.5	1.4	2.5	2.8	10	2	NBR
KL76-050	50	63.2	60	9.5	8.9	1.8	2.5	3.6	10	2	NBR
