Brand Name : KELONG
Model Number : KL84
Certification : ISO9001 / IRIS
Place of Origin : CHINA
MOQ : 100
Payment Terms : L/C, T/T
Supply Ability : 100,000 pcs /months
Delivery Time : 15
Packaging Details : Customizable packaging
Name : Single Acting Rod Seal
Pressure (max) bar : 12
Temperature (max) °C : -30/+105
Sliding Speed (max)- m/s : 1.0
Material : NBR
Application : Pneumatic Cylinders
KL84 pneumatic rod seal is a single acting uring type pneumatic rod sealing element produced from elastomer material.

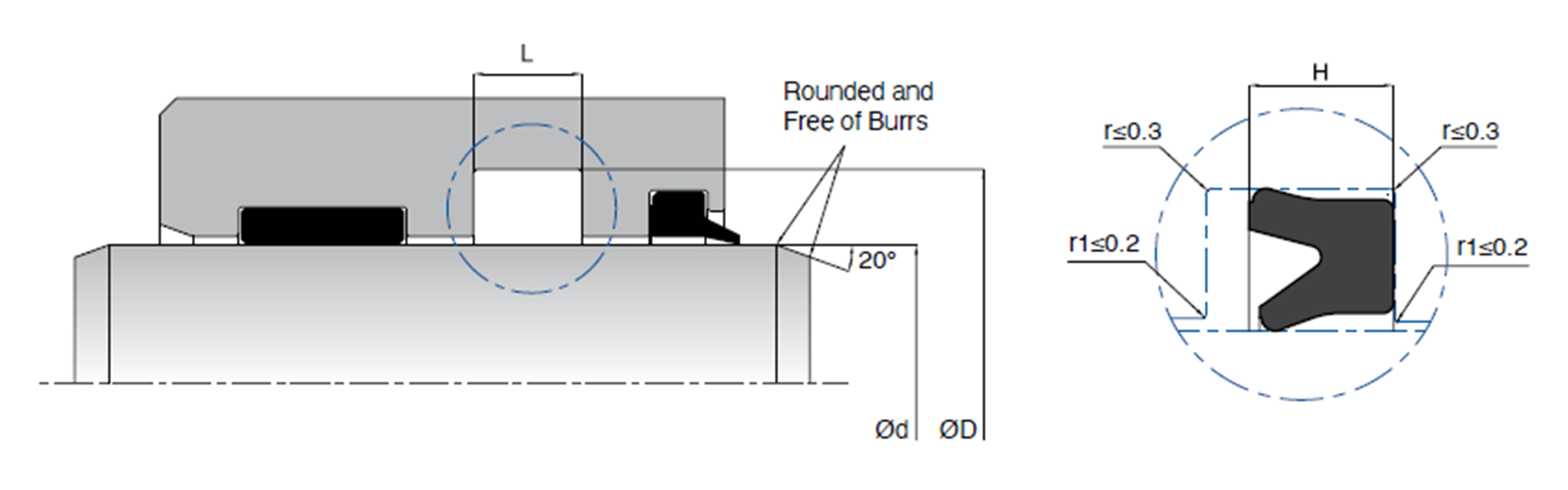

d (f8) | D (H11) | L (+0.2/-0) | H | MATERIAL | |
KL82-003 | 3 | 6 | 2.5 | 2 | NBR |
KL82-004 | 4 | 7 | 2.5 | 2 | NBR |
KL82-005 | 5 | 8 | 2.5 | 2 | NBR |
KL82-006 | 6 | 9 | 2.5 | 2 | NBR |
KL82-007 | 7 | 10 | 2.5 | 2 | NBR |
KL82-008 | 8 | 11 | 2.5 | 2 | NBR |
KL82-010 | 10 | 13 | 2.5 | 2 | NBR |
KL82-010/1 | 10 | 14 | 3.2 | 2.7 | NBR |
KL82-010/2 | 10 | 16 | 5 | 4.5 | NBR |
KL82-012 | 12 | 16 | 3.2 | 2.7 | NBR |
KL82-014 | 14 | 18 | 3.2 | 2.7 | NBR |
KL82-016 | 16 | 20 | 3.2 | 2.7 | NBR |
KL82-020 | 20 | 24 | 3.2 | 2.7 | NBR |
![]() |
KL84 Pneumatic Rod Seals Single Acting Uring Type Simple Groove Design Images |
