Synthetic Rubber High Pressure Hose , EN 856 4SP Hydraulic Hose

Name: Synthetic Rubber High Pressure Hose EN 856 4SP Hydraulic Hose
Brand: Kelong
Price: 1 USD

China Synthetic Rubber High Pressure Hose , EN 856 4SP Hydraulic Hose wholesale

Brand Name : Kelong

Model Number : EN856-4SP

Certification : ISO9001 / IRIS

Place of Origin : China

Payment Terms : L/C, T/T, Paypal

Supply Ability : 16,5600 meters /months

Delivery Time : 7-15 days

Name : EN 856 4SP Hydraulic Hose

Tube : Synthetic rubber layer, steel wire wrapping layer

Reinforcement : Multi-layer high-strength steel wire winding

Cover : Abrasion and ozone resistant synthetic rubber

Temperature range : -40°C to 121°C / -40°F to +250°F

Note : Various covers available

Applications : Petroleum based hydraulic oil

Contact Now

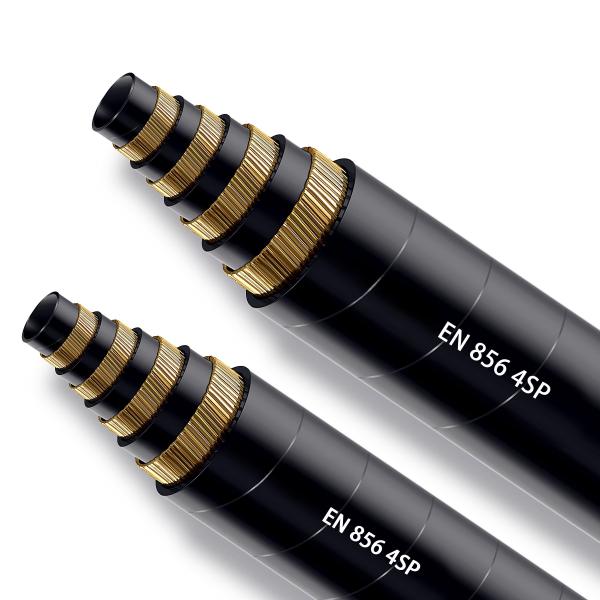

High Quality Synthetic Rubber High Pressure EN 856 4SP Steel Wire Spiraled Hydraulic Hose

EN 856 4SP steel wire spiraled hydraulic hose is suitable for mine hydraulic support and the related equipment. The hose is resistant to flame and static. It is almost similar to EN 856 4SH steel wire spiraled hydraulic hose in structure, but it can bear higher working pressure than EN 856 4SH steel wire spiraled hydraulic hose under the same temperature.

Features:

◆ resistant to abrasion and corrosion
◆ perfectly resistant to high pressure
◆ resistant to abrasion, corrosion, cut, weather, ozone, oil and aging
◆ longer service life

Material:
Tube: high quality black oil resistant synthetic rubber

Reinforcement: four layers of high tensile and high strength spiraled steel wire

Cover: high quality black synthetic rubber

Working temperature range: -40℃ to +100℃

The specification of EN 8564SP steel wire spiraled hydraulic hose
Hose code	Size		Dash size	ID		WD		OD		Working pressure		Proof pressure		Min burst pressure		Min bending radius	Weight
Hose code	mm	inch	Dash size	min	max	min	max	min	max	MPa	Psi	MPa	Psi	MPa	Psi	mm	kg/m
EN8564SP-01	6.3	1/4	-4	6.2	7.0	14.1	15.3	17.1	18.7	45.0	6525	90	13050	180	26100	150	0.64
EN8564SP-02	10	3/8	-6	9.3	10.1	16.9	18.1	20.6	22.2	44.5	6450	89	12905	178	25810	180	0.75
EN8564SP-03	12.5	1/2	-8	12.3	13.5	19.4	21.0	23.8	25.4	41.5	6020	83	12035	166	24070	230	0.89
EN8564SP-04	16	5/8	-10	15.5	16.7	23.0	24.6	27.4	29.0	35.0	5075	70	10150	140	20300	250	1.10
EN8564SP-05	19	3/4	-12	18.6	19.8	27.4	29.0	31.4	33.0	35.0	5075	70	10150	140	20300	300	1.50
EN8564SP-06	25	1	-16	25.0	26.4	34.5	36.1	38.5	40.9	28.0	4060	56	8120	112	16240	340	2.00
EN8564SP-07	31.5	1-1/4	-20	31.4	33.0	45.0	47.0	49.2	52.4	21.0	3045	42	6090	84	12180	460	3.00
EN85645P-08	38	1-1/2	-24	37.7	39.3	51.4	53.4	55.6	58.8	18.5	2680	37	5365	74	10730	560	3.40
EN85645P-09	51	2	-32	50.4	52.0	64.3	66.3	68.2	71.4	16.5	2390	33	4785	66	9570	660	4.35
