Name: Industrial High Pressure Hose EN856 4sh Hydraulic Rubber Hose
Brand: Kelong
Price: 1 USD

Brand Name : Kelong

Model Number : EN856 4 SH

Certification : ISO9001 / IRIS

Place of Origin : China

Payment Terms : L/C, T/T, Paypal

Supply Ability : 16,5600 meters / months

Delivery Time : 7-15 days

Name : High Pressure Hydraulic Rubber Hose

Tube : Synthetic rubber layer, steel wire wrapping layer

Reinforcement : Multi-layer high-strength steel wire winding

Cover : Abrasion and ozone resistant synthetic rubber

Temperature range : -40°C to 121°C / -40°F to +250°F

Note : Various covers available

Applications : Petroleum based hydraulic oil

Contact Now

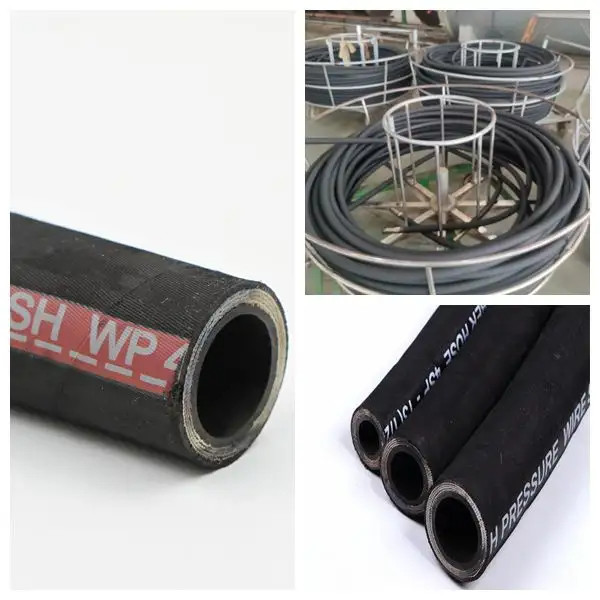

The en856 4sh hydraulic rubber hose is composed of three parts: inner tube, reinforcement layer, and outer rubber cover.

1) The inner tube is made of synthetic rubber that can withstand water and oil.

2) The reinforcement layer consists of multi-layer high-tensile spiraled steel wire layers that provide a strong structure.

3) The outer cover is made of high-quality synthetic rubber that is both weather and ozone resistant.

Product Name	Industrial High Pressure Hose EN856 4sh Hydraulic Rubber Hose
Application	Industrial and automotive systems use hydraulic fluids to transfer force. The hydraulic hose is widely used in these field. These fluids can be petroleum or water-based, and contain mineral oils, glycols, lubricants, emulsions, or hydrocarbons.
Reinforcement Layer	Multi-layer high intensity steel wire spiraled reinforcement
Outer Cover	Weather & ozone resistant synthetic rubber coating
Working Temperature Range	-40℉ to +212℉ (-40℃ to +100℃)
HS Code	4009220000
Products Application	EN856 4sh hydraulic rubber hose are utilized in multiple industries and machine tools, including engineering, metallurgy, mining, agriculture, and equipment like cranes, ships, and injection molding machines.

DIN EN856-4SH
Normial inner diameter		Max.Working Pressure		Inside Dia. (mm)		Outside Dia. (mm)		Min. Breaking Pressure		Min.Bend Radius
In	mm	Mpa	Bar	Min.	Max.	Min.	Max.	Mpa	Bar	Min.Bend Radius
3/4"	19	42	420	18.6	19.8	31.4	33.4	168	1680	280
1"	25	38	380	25	26.4	37.5	39.9	152	1520	340
1-1/4"	32	32.5	325	31.4	33	43.9	47.1	130	1300	460
1-1/2"	38	29	290	37.7	39.3	51.9	55.1	116	1160	560
2"	51	25	250	50.4	52	66.5	69.7	100	1000	700
Executive standards					DIN EN856
Temp. Range					40℃~+100℃
The following are commonly used specifications. If you need other's please contact us to confirm the details. OEM order is accepted.
